Industrial Elite Series Laser Cutter CM1390E

CO2 laser cutting machine
  • Machine Features:REDSAIL industrial grade ‘Elite’ series CM1390E offers a larger engraving area compared to the standard 48″x36″ platforms. New available Drive highest precision in same class stepper motor drive system. Upgrade your laser to be 100W-150W of cutting power (includes the higher industry water chiller). Compatible LightBurn offers an All-In-One laser software thats both intuitive and feature rich.
  • Applicable Materials: Wide range of engraving, can be used for leather, wool, fur, acrylic, plexiglass, wood products, plastics, rubber, ceramic tiles, crystal, jade, bamboo products, granite, marble, epoxy resin and other non-metallic materials.
  • Applicable Industries: This type of machine is suitable for non-metal template cutting industries such as clothing leather, template cutting, packaging printing, advertising decoration, architectural decoration, computer embroidery cutting, handicrafts, acrylic boards, and medium-density decorative boards in the plastic industry.

    IMGES

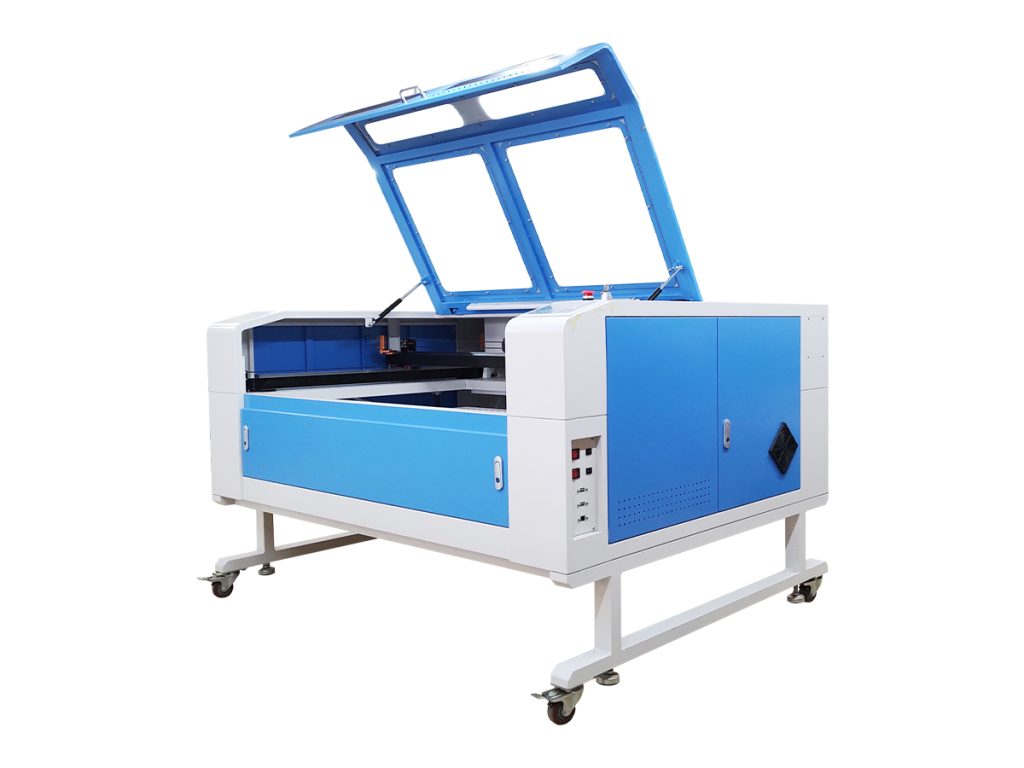

    REDSAIL CM1390E laser engraving and cutting machine product multi-angle all-round appearance display picture

    VIDEOS

    Redsail Laser CM1390E laser engraving machine appearance display and laser cutting and engraving function demonstration video

    SPECIFICATIONS

    Specifications and parameters of CM1390E laser engraving and cutting machine

    Model CM1390E
    Laser tube Water cooling Co2   sealed glass
    Control system DSP
    Drive type Micro Stepping Motor
    Laser Power 80W/100W/130W/150W/180W
    Work Area (mm) 1300 x 900
    Max speed 1000 mm/s
    Image form Plt, Dxf, Bmp, Ai,   Dst
    Resolution 2500 DPI
    Controller Ruida(RDWorks)/TopWisdom(AutoLaser)
    PC Interface USB3.0/ USB   Disk/NetWork
    Red Dot Pointer Yes
    Location precision <0.01mm
    Motorized Up and Down   table 200mm
    Accessories Air assistant,   Exhaust system, Water cooling sytem
    Power 110V or 220-240V/ 50〜60Hz
    Machine Dimension 1780*1340*1060(mm)
    N. W. (Kg) 380
    G. W. (Kg) 420
    Optional Topwisdom control   system (AutoLaser software)
    Honeycomb table
    Rotary attachment
    Cross red dot
    Safety Sensor   for each door
    Auto-Focus Function

    APPLICATIONS

    REDSAIL Elite Laser Cutting Machines are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.

    REDSAIL industrial laser cutting machine offers a large laser engraving area of 51″ * 35″ working platform. With the latest available drive of the highest precision stepper motor drive system, thus it is a high precision laser cutter. You can choose to upgrade your laser engraver and cutter to 100W – 180W, which includes an industry water chiller, to support continuous operation.
    It is worthwhile for your company to own a professional CO2 laser cutting machine, your business is working much more efficiently. You can accept more laser cutting orders or produces more premium products for your customers. Receiving positive quality reviews, the customers continuously partner with your company.

    REDSAIL Elite Laser Cutting Machines are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.

    CO2 Material Compatibility Laser Marking/Engraving Laser Cutting
    Wood
    Acrylic
    Fabric
    Glass
    Coated Metals
    Ceramic
    Delrin
    Cloth
    Leather
    Marble
    Matte Board
    Melamine
    Mother of Pearl
    Paper
    Mylar v
    Pressboard
    Rubber
    Wood Veneer
    Fiberglass
    Painted Metals
    Tile
    Plastic
    Cork
    Anodized Aluminum
    Stainless Steel *
    Brass *
    Titanium *
    Bare Metals *
    CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page.
    Please contact us for more specific materials which is not listed, we can process a sample for confirmation.
    Laser Cutter & Engraver For Wood

    Laser cutting engraving machines for MDF, plywood, alder, cherry and other wood species.

    Laser Cutter & Engraver For Leather

    Laser engraving and cutting machines for fine engraving and precision cutting on natural leather, artificial leather.

    Laser Cutter & Engraver For Acrylic

    The CO2 laser engraving produces a matte surface for impressive laser engraving results.

    Laser Cutter & Engraver For Paper

    You can cut, engrave, score or punch holes in paper, cardboard or chipboard with a laser cutting and engraving machine.

    Laser Cutter & Engraver For Glass

    It can engrave letters, icons and photos on glass, mainly for engraving on water glasses and bottles.



    FEATURES

    More features of our laser engravers and cutters.

    GET FREE DEMO VIDEOS!

    We can make a free LIVE demonstration online!

    2-Way Material Thru-Pass-Thru Points for Greater Flexibility

    REDSAIL has dramatically improved our laser cutting machinery, to be widely applied in different applications. With the feature of 2-way pass-through points, you can perform laser cutting for huge-sized materials. Extending outside of the working area for both front and back sides.

    REDSAIL Elite-SERIES 100W CO2 Laser Machine

    Redsail Professional Elite Series offers a variety of Watts ranging from 80W to 180W, if you are not sure which watts are best for you feel free to consult our customer service experts.

    All laser tubes for laser cutting machines have a lifetime, our laser tubes can perform up to 10,000 hours. This is not just a figure only, we had done experiments, and collect data accordingly.

    Starting from the assembling process, we ensure the quality beam profile and maximum power. The Professional Elite Series is designed and innovated to handle high-demand production and long days operations. As well as ensuring the consistency of the same products between different batches.

    Constantly upgrading and advancing the beam power density generates a powerful cutting and engraving revolution. Furthermore, all REDSAIL laser tubes have 18 months of warranty and for our laser machines, we provide a lifetime free warranty.

    Laser Software

    RUIDA Digital Control: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible. RDWorks v8 which can also be compatible with Lightburn software– all-in-one layout, editing, and control software package that is extremely intuitive and feature rich.

    Honeycomb & Knife Blade Platforms Offers Flexible Material
    Both the Knife Blade and Honeycomb platforms are included for the flexibility, whether it is during cutting or engraving material.

    REDSAIL Professional Elite Laser Details:

    • VENTILATION: Exhausted fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.

    • CROSS RED DOT GUIDANCE: Improved accuracy cross red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.

    • AIR ASSIST: During the laser cutting process, air ventilation is very critical to prevent material from deformation. Furthermore, it can prevent dust, debris, combustible gas from the laser head. Preventing laser head focal lens from contamination, keeping your worktable cleaner and safer engravings more precise.

    • LINEAR RAIL GUIDING SYSTEM: Equipped with the better transmitting system – new available drive with the highest precision in same class stepper motor drive system and PMI linear rail guideway for higher precision and longer service life.

    • WATER PROTECTION SYSTEM: Pre-installed signal plug and the included industrial water chiller allow a fast and easy setup, protecting the laser tube and maximining the working life.

    Push Button Z-Axis

    REDSAIL Professional Elite Laser Cutter’s electrical accelerating Z Table can accommodate 8″ to 10″. As there is a higher cabinet to provide you with additional workspace, by lowering the platform.

    Stepper Drive System

    New available Drive highest precision in same class stepper motor drive system.

    New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB

    Various laser to PC connectivity choices – USB, Ethernet, or WiFI (router included).

    New 256MB USB Flash Drive For Alternative Job Storage

    As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.

    Optional Auto-Focus

    More earlier to adjust the focal length, you can get all ready for working just one second!

    PC Compatibility Windows, Mac OS, Or Linux

    Just Using your current computer! Windows 32 or 64 bit is ok for any software, Windows, Mac OS, and even Linux operating systems 32 or 64 bit is ok if you use LightBurn.

    DIMENSIONS

    CM1390E laser engraving and cutting machine size area and other specifications
